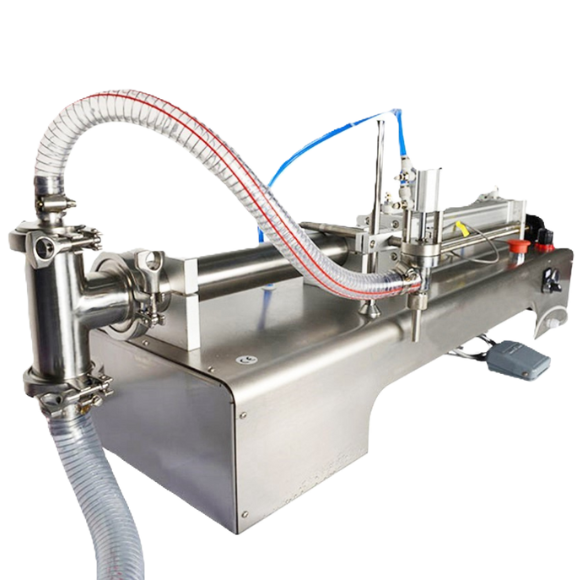

P.V Single Nozzles Pneumatic Liquid Filler PLF500S
P.V Single Nozzle Pneumatic Liquid Filler PLF500S is a semi-automatic piston-type liquid filling machine This machine is reasonable in design, small, and exquisite in model. The piston and hopper of the cylinder are made up of 304 stainless steel and Polytetrafluoroethylene (PTEF). Both filling volume and filling speed can be adjusted at will, filling accuracy is high. The filling head adopts an anti-leakage and lifting filling device.
Model : | PV-PLF500S |
Product Type : | Single Nozzle Digital Liquid Filler |
Voltage : | 220V |
Frequency : | 50/60hz |
Material : | Stainless Steel |
Deviation : | ± 1 to 2 % |
Filling Volume : | 50-500 ml |
Air Supply : | 400 LPM |
Air Pressure : | 0.6 Mpa |
Maximum Speed : | 600 bottles/hr (Approx.) |
Automation Grade : | Semi-automatic |
Dimension : | 916*370*325 mm |
Weight: | 40 kg (Approx.) |
- Suitable for Liquid filling
- High accuracy
- Filling Volume and Speed can adjust
- Compatible with different container types, including bottles, jars, and tubes.
Suitable for Liquid
