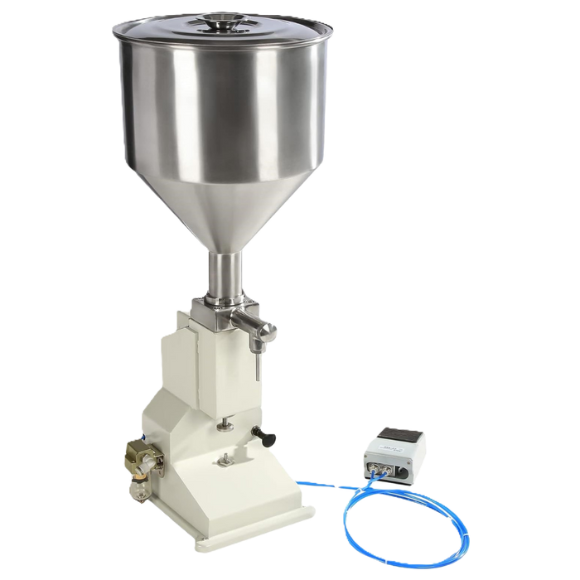

P.V Pedal Operated Paste Filler POPF50
P.V Pedal Operated Paste Filler POPF50 is a semi-automatic piston-type liquid filling machine with molecular fast-flowing inbuilt technology. This machine is reasonable in design, small, and exquisite in the model. The piston and hopper of the cylinder are made up of 304 stainless steel and PTEF. Both filling volume and filling speed can be adjusted at will, filling accuracy is high. The filling head adopts an anti-leakage technology
Model : | PV-POPF50 |
Product Type : | Pedal-Operated Paste Filler |
Voltage : | 220V |
Frequency : | 50/60hz |
Material : | Stainless Steel |
Deviation : | ±2% |
Filling Range: | 5-50 ml |
Hopper Capacity | 10 L |
Height Range: | 200 mm |
Nozzle Dia : | 2.5 mm |
Working Pressure : | 0.4 - 0.6 Mpa |
Operation Mode : | Semi-automatic |

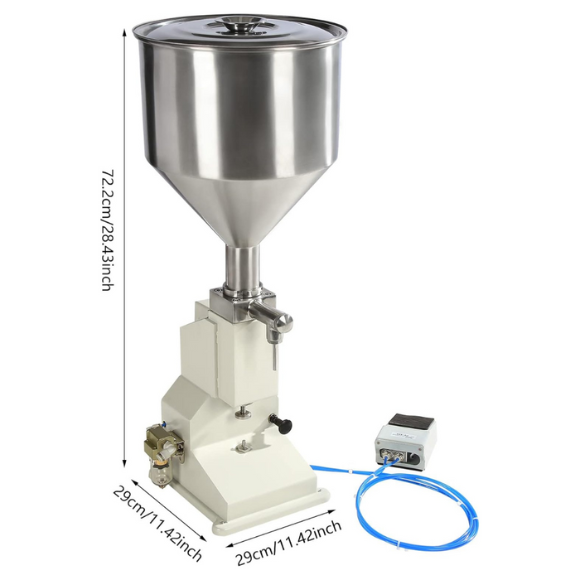

Dimension : | 340*340*770 mm |
Weight: : | 40 kg (Approx.) |
- Suitable for liquid or paste filling
- Small model easy to handle
- High accuracy
- Filling volume and filling speed can adjust
Suitable for Small and Medium-sized enterprises or the chemical and pharma industry.
