Double Nozzle Pneumatic Liquid Filler PLF500D

Double Nozzle Pneumatic Liquid Filler PLF500D

Double Nozzle Pneumatic Liquid Filler PLF500D

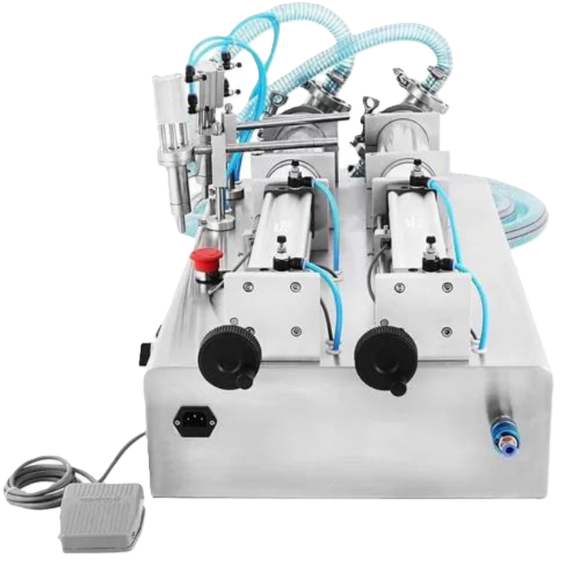

P.V Double Nozzle Pneumatic Liquid Filler PLF500D is a semi-automatic piston-type liquid filling machine This machine is reasonable in design, small, and exquisite in model. The piston and hopper of the cylinder are made up of 304 stainless steel and Polytetrafluoroethylene (PTEF). Both filling volume and filling speed can be adjusted at will, filling accuracy is high. The filling head adopts an anti-leakage and lifting filling device.

Model : PV-PLF500D
Product Type : Double Nozzle Pneumatic Liquid Filler
Voltage : 220V
Frequency : 50/60hz
Material  : Stainless Steel
Deviation :  ± 1 to 2 %
Filling Volume : 50-500 ml
Air Supply : 400 LPM
Air Pressure :  0.6 Mpa
Maximum Speed : 600 bottles/hr (Approx.)
Automation Grade : Semi-automatic
Dimension : 1086*475*353 mm
Weight:  70 kg (Approx.)
  • Suitable for Liquid filling
  •  High accuracy
  •  Filling Volume and Speed can adjust
  •  Compatible with different container types, including bottles, jars, and tubes.

Suitable for Liquid
